Implementing a Consumer-Driven Contract for a GraphQL Provider with Node and Express

Table Of Contents

Consumer-driven contract (CDC) tests are a technique to test integration points between API providers and API consumers without the hassle of end-to-end tests (read it up in a recent blog post). A common use case for consumer-driven contract tests is testing interfaces between services in a microservice architecture.

In this tutorial, we’re going to create a GraphQL API provider with Node and Express that implements the Heroes query from the contract created previously by a GraphQL consumer.

Then, we’ll create a contract test with the JavaScript version of Pact that verifies that our provider works as specified in the contract.

This tutorial assumes you have a current version of Node installed.

Example Code

This article is accompanied by a working code example on GitHub.

Creating an Express Server

If you have already followed the previous tutorial about Node and Pact, you can re-use the Node Express server created there.

Otherwise, follow the instructions in the previous tutorial to create an Express Server from scratch.

Adding the Heroes GraphQL Endpoint

Having a base Express project, we’re ready to implement a new GraphQL endpoint.

The Contract

But first, let’s have a look at the contract against which we’re about to implement. The contract has been created by the consumer in this article:

{
  "consumer": {
    "name": "graphql-hero-consumer"
  },
  "provider": {
    "name": "graphql-hero-provider"
  },
  "interactions": [
    {
      "description": "a GetHero Query",
      "request": {
        "method": "POST",
        "path": "/graphql",
        "headers": {
          "content-type": "application/json"
        },
        "body": {
          "operationName": "GetHero",
          "query": "\nquery GetHero($heroId: Int!) {\nhero(id: $heroId) {\nname\nsuperpower\n__typename\n}\n}",
          "variables": {
            "heroId": 42
          }
        },
        "matchingRules": {
          "$.body.query": {
            "match": "regex",
            "regex": "..."
          }
        }
      },
      "response": {
        "status": 200,
        "headers": {
          "Content-Type": "application/json; charset=utf-8"
        },
        "body": {
          "data": {
            "hero": {
              "name": "Superman",
              "superpower": "Flying",
              "__typename": "Hero"
            }
          }
        },
        "matchingRules": {
          "$.headers.Content-Type": {
            "match": "regex",
            "regex": "application\\/json; *charset=utf-8"
          },
          "$.body.data.hero.name": {
            "match": "type"
          },
          "$.body.data.hero.superpower": {
            "match": "type"
          }
        }
      }
    }
  ],
  "metadata": {
    "pactSpecification": {
      "version": "2.0.0"
    }
  }
}

The contract contains a single request / response pair, called an “interaction”. In this interaction, the consumer sends a POST request containing a GraphQL query to the /graphql HTTP endpoint. The expected response to that request has HTTP status 200 and contains a hero JSON object.

In the following, we assume that the contract has been published on a Pact Broker by the consumer. But it’s also possible to take the contract file from the consumer codebase and copy it into the provider code base (be careful, though, we’re loosing the single source of truth!).

Adding an Express Route

To implement the GraphQL endpoint on the provider side, we create a new route in our express server:

// ./routes/graphql.js
const graphqlHTTP = require('express-graphql');
const {buildSchema} = require("graphql");

const heroesSchema = buildSchema(`
  type Query {
    hero(id: Int!): Hero
  }

  type Hero {
    id: Int!
    name: String!
    superpower: String!
    universe: String!
  }
`);

const getHero = function () {
    return {
        id: 42,
        name: "Superman",
        superpower: "Flying",
        universe: "DC"
    }
};

const root = {
    hero: getHero
};

const router = graphqlHTTP({
    schema: heroesSchema,
    graphiql: true,
    rootValue: root
});

module.exports = router;

First, we’re defining a GraphQL schema for querying heroes. Note that this schema must provide the query we have seen in the consumer-driven contract above.

For a detailed discussion of GraphQL schemas, refer to the GraphQL documentation.

Next, we’re providing a getHero() function that is responsible to find a hero. In this example, we’re simply always returning the same object. In the real world, this function would load a hero from an external resource like a database depending on an ID that’s passed in.

In the root object, we’re defining the GraphQL root. Since we’re only providing a GraphQL query for heroes, the only root is hero which should resolve to a hero object, so we’re using the getHero function we have defined above.

Using the express-graphql module, we’re then creating a GraphQL HTTP resolver (I called it “router” in the style of simple REST endpoints). We set the graphiql property to true in order to get access to a nice GraphQL query web interface.

Finally, we have to make the new endpoint known to the express server by adding it in the app.js file:

// ./app.js
const graphqlRouter = require('./routes/graphql');
app.use('/graphql', graphqlRouter);

Testing the GraphQL Endpoint

We now have a working /graphql endpoint. We can test it by running npm run start and type the URL http://localhost:3000/graphql into a browser.

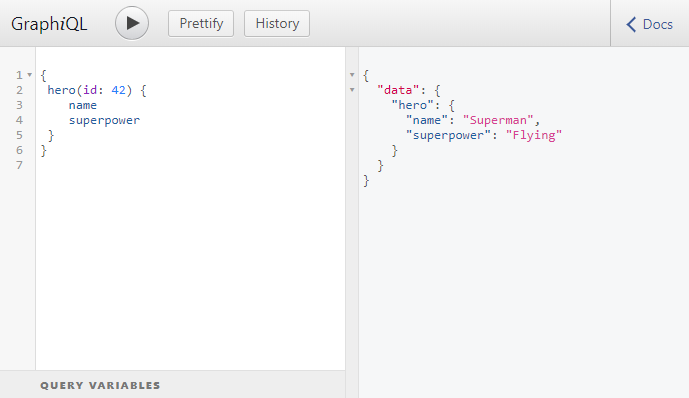

We should see the graphiql interface that looks something like this:

GraphiQL Web Interface

We can play around and enter a query like shown in the screenshot to check if the server responds accordingly.

Setting Up Pact

Now, we want to verify that our GraphQL endpoint works as expected by the contract.

So, let’s create a contract test that does the following:

  1. start up our express server with the /graphql endpoint
  2. send a request against the endpoint with a hero query
  3. verify that the response matches the expectations expressed in the contract

Pact will do most of the work, but we need to set it up correctly.

Dependencies

First, we add some dependencies to package.json:

// ./package.json
{
  "devDependencies": {
    "@pact-foundation/pact": "7.0.3",
    "start-server-and-test": "^1.7.5"
  }
}
  • we use pact to interpret a given contract file and create a provider test for us
  • we use start-server-and-test to allow us to start up the Express server and the provider test at once.

Creating a Provider-Side Contract Test

The actual contract testing is done by Pact. We simply have to make sure that our GraphQL endpoint is up and running and ready to receive requests.

Let’s create the script pact/provider_tests_graphql.js to configure Pact:

const { Verifier } = require('@pact-foundation/pact');
const packageJson = require('../package.json');

let opts = {
    providerBaseUrl: 'http://localhost:3000',
    provider: 'graphql-hero-provider',
    pactBrokerUrl: 'https://adesso.pact.dius.com.au',
    pactBrokerUsername: process.env.PACT_USERNAME,
    pactBrokerPassword: process.env.PACT_PASSWORD,
    publishVerificationResult: true,
    providerVersion: packageJson.version,
};

new Verifier().verifyProvider(opts).then(function () {
    console.log("Pacts successfully verified!");
});

To make the script runnable via Node, we add some scripts to package.json:

// ./package.json
{
  "scripts": {
    "start": "node ./bin/www.js",
    "pact:providerTests:graphql": "node ./pact/provider_tests_graphql.js",
    "test:pact:graphql": "start-server-and-test start http://localhost:3000 pact:providerTests:graphql"
  }
}

The scripts are explained in detail in my previous tutorial on creating a contract test for a Node REST provider.

We can now run the provider tests and they should be green:

npm run test:pact:graphql

Conclusion

In this tutorial we went through the steps to create an Express server with a GraphQL endpoint and enabled it to run provider contract tests against a Pact contract.

You can look at the example code from this tutorial in my github repo.
