Complete Guide to CORS

“CORS” stands for Cross-Origin Resource Sharing. CORS is a protocol and security standard for browsers that helps to maintain the integrity of a website and secure it from unauthorized access.

It enables JavaScripts running in browsers to connect to APIs and other web resources like fonts, and stylesheets from multiple different providers.

In this article, we will understand the following aspects of CORS:

• What’s the CORS standard?
• What are the different types of CORS requests?
• What are different CORS headers and what do we need them for?
• What security vulnerabilities exist around cross-origin requests?
• What are the best practices for secure CORS implementations?

Example Code

What is CORS?

CORS is a security standard implemented by browsers that enable scripts running in browsers to access resources located outside of the browser’s domain.

The CORS policy is published under the Fetch standard defined by the WHATWG community which also publishes many web standards like HTML5,DOM, and URL.

According to the Fetch standard spec:

The CORS protocol consists of a set of headers that indicates whether a response can be shared cross-origin. For requests that are more involved than what is possible with HTML’s form element, a CORS-preflight request is performed, to ensure the request’s current URL supports the CORS protocol.

Some scenarios of browsers fetching resources where CORS comes into play are:

• Display a map of a user’s location in an HTML or single page application hosted in a domain xyz.com by calling google’s Map API https://maps.googleapis.com/maps/api/js.
• Show tweets from a public Twitter handle in an HTML hosted in a domain xyz.com by calling a Twitter API https://api.twitter.com/xxx/tweets/xxxxx.
• Using web fonts like Typekit and Google Fonts in an HTML hosted in a domain xyz.com from their remote domains.

Let us understand in greater detail the role of a CORS policy for fetching resources from remote origins, followed by how CORS policy is enforced by browsers, and how we implement CORS in our applications in the subsequent sections.

Relaxation of the Same-Origin Policy

The role of a CORS policy is to maintain the integrity of a website and secure it from unauthorized access.

The CORS protocol was defined to relax the default security policy called the Same-Origin Policy (SOP) used by the browsers to protect their resources.

The Same-Origin Policy permits the browser to load resources only from a server hosted in the same-origin as the browser.

The SOP was defined in the early years of the web and turned out to be too restrictive for the new age applications where we often need to fetch different kinds of resources from multiple origins.

The CORS protocol is implemented by all modern browsers to allow controlled access to resources located outside of the browser’s origin.

CORS Terminology

Before going further, let us define some frequently used terms like browsers, servers, origins, cross-origins. We will then use these terms consistently throughout this article.

What is an Origin?

An Origin in the context of CORS consists of three elements:

• URI scheme, for example http:// or https://
• Hostname like www.xyz.com
• Port number like 8000 or 80 (default HTTP port)

We consider two URLs to be of the same origin only if all three elements match.

A more elaborate explanation of the Web Origin Concept is available in RFC 6454.

Origin Server and Cross-Origin Server

The terms origin server and cross-origin server are not CORS terms. But we will be using these terms for referring to the server that is hosting the source application and the server to which the browser will send the CORS request. This diagram shows the main participants of a CORS flow:

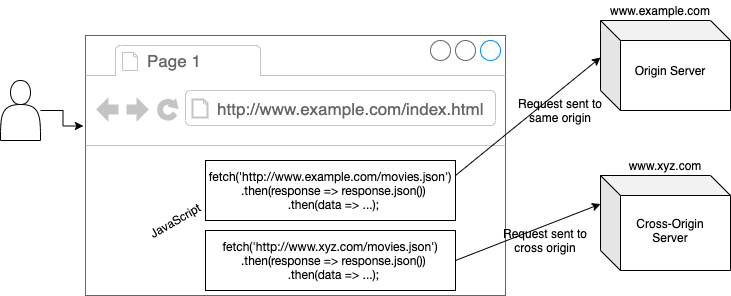

The following steps happen, when a user types in a URL: http://www.example.com/index.html in the browser:

1. The browser sends the request to a server in a domain named www.example.com. We will call this server “Origin server” which hosts the page named index.html.
2. The origin server returns the page named index.html as a response to the browser.
3. The origin server also hosts other resources like the movies.json API in this example.
4. The browser can also fetch resources from a server in a different domain like www.xyz.com. We will call this server “Cross-Origin server”.
5. The browser uses Ajax technology with the built-in XMLHttpRequest object, or since 2017 the new fetch function within JavaScript to load content on the screen without refreshing the page.

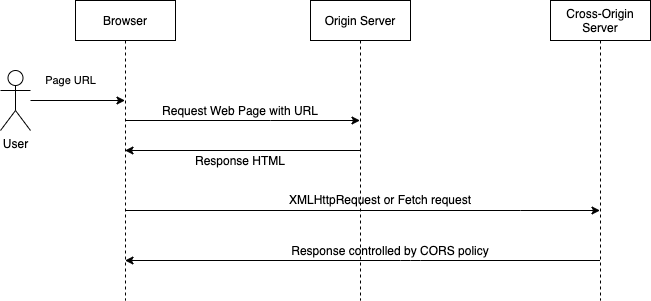

These sequence of steps are represented in this sequence diagram:

We will use the terms “origin server” and “cross-origin server” throughout this article.

The origin server is the server from which the web page is fetched and the cross-origin server is any server that is different from the origin server.

Same-Origin vs. Cross-Origin

As stated earlier, the Same-Origin Policy (SOP) is a default security policy implemented by browsers. The SOP permits the browser to load resources only from the origin server.

In the absence of the Same-Origin Policy, any scripts downloaded from cross-origin servers will be able to access the document object model (DOM) of our website and allow it to access potentially sensitive data or perform malicious actions without requiring user consent.

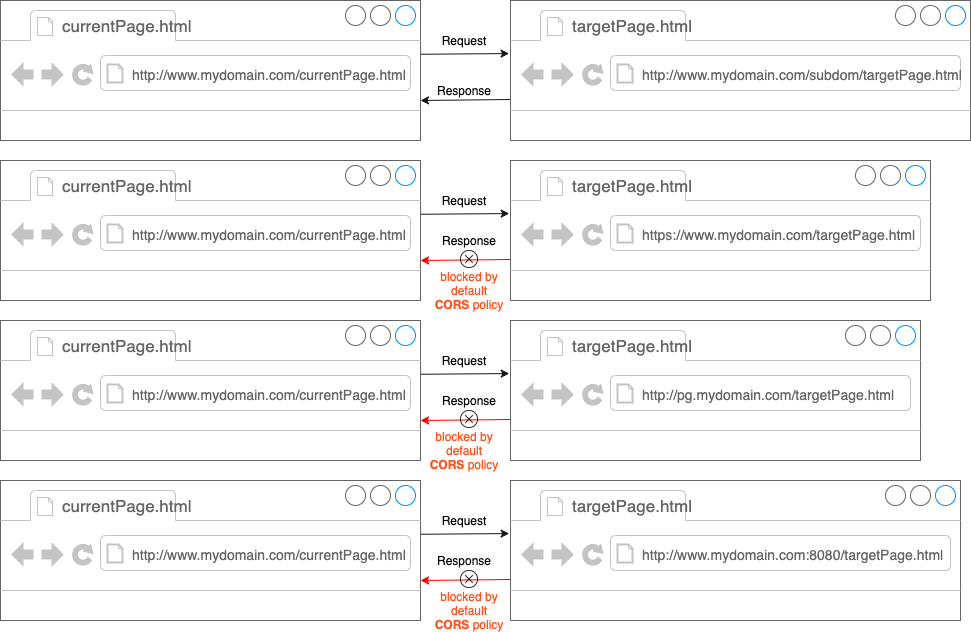

The following figure shows an HTML page currentPage.html making same or cross-origin requests to targetPage.html:

As we can see in this diagram, same-origin requests are allowed and cross-origin requests are blocked by default by the browser.

The URLs of targetPage.html that the browser rendering currentPage.html considers to be of the same or cross-origin are listed in this table. The default port is 80 for HTTP and 443 for HTTPS for the URLs in which we have not specified any port:

If the origins corresponding to the URLs are same, we can run JavaScripts in currentPage.html which can fetch contents from targetPage.html.

In contrast, for cross-origin URLs, JavaScripts running in currentPage.html will be prevented from fetching contents from targetPage.html without a CORS policy configured correctly.

How Browsers Implement the CORS Policy

The CORS protocol is enforced only by the browsers. The browser does this by sending a set of CORS headers to the cross-origin server which returns specific header values in the response. Based on the header values returned in the response from the cross-origin server, the browser provides access to the response or blocks the access by showing a CORS error in the browser console.

Using the Header based Protocol of CORS

When a request for fetching a resource is made from a web page, the browser detects whether the request is to the origin server or the cross-origin server and applies the CORS policy if the request is for the cross-origin server.

The browser sends a header named Origin with the request to the cross-origin server. The cross-origin server processes this request and sends back a header named Access-Control-Allow-Origin in the response.

The browser checks the value of the Access-Control-Allow-Origin header in the response and renders the response only if the value of the Access-Control-Allow-Origin header is the same as the Origin header sent in the request.

The cross-origin server can also use wild cards like * as the value of the Access-Control-Allow-Origin header to represent a partial match with the value of the Origin header received in the request.

CORS Failures

CORS failures cause errors but specifics about the error are not available to the browser for security reasons because an attacker could take hints from the error message to tailor subsequent attacks to increase the chances of success.

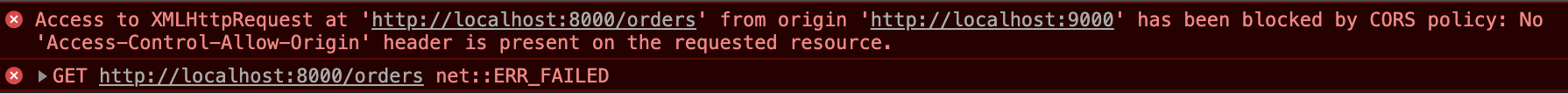

The only way to know about the error is by looking at the browser’s console for details of the error which is usually in the following form:

Access to XMLHttpRequest at 'http://localhost:8000/orders' from origin
'http://localhost:9000' has been blocked by CORS policy:
No 'Access-Control-Allow-Origin' header is present on the requested resource.

The error displayed in the browser console is accompanied by an error “reason” message. The reason message can differ across browsers depending on the implementation. To get an idea of some reasons behind CORS errors, we can check the error reason messages for Firefox browser.

Type of CORS Requests Sent by a Browser

The browser determines the type of request to be sent to the cross-origin server depending on the kind of operations we want to perform with the resource in the cross-origin server.

The browser can send three types of requests to the cross-origin server:

• simple
• preflight
• requests with credentials

Let us understand these request types and observe them in the browsers' network log by running an example in the subsequent sections.

Simple CORS Requests (GET, POST, and HEAD)

Simple requests are sent by the browser for performing operations it considers safe like a GET request for fetching data or a HEAD request to check status. The request sent by the browser is simple if one of the below conditions applies:

• The HTTP request method is GET, POST, or HEAD
• The HTTP request contains a CORS safe-listed header: Accept, Accept-Language, Content-Language, Content-Type.
• When the HTTP request contains Content-Type header, it contains as it’s values: application/x-www-form-urlencoded, multipart/form-data, or text/plain
• No event listeners are registered on any XMLHttpRequestUpload object
• No ReadableStream object is used in the request

The browser sends the simple request as a normal request similar to the Same Origin request after adding the Origin header, and the Access-Control-Allow-Origin header is checked by the browser when the response is returned.

The browser is able to read and render the response only if the value of the Access-Control-Allow-Origin header matches the value of the Origin header sent in the request. The Origin header contains the source origin of the request.

Preflight Requests

In contrast to simple requests, the browser sends preflight requests for operations that intend to change anything in the cross-origin server like an HTTP PUT method to update a resource or HTTP DELETE for deleting a resource.

These requests are not considered safe so the web browser first makes sure that cross-origin communication is allowed by first sending a preflight request before sending the actual request to the cross-origin server. Requests which do not satisfy the criteria for simple request also fall under this category.

The preflight request is an HTTP OPTIONS method which is sent automatically by the browser to the cross-origin server, to check that the cross-origin server will permit the actual request. Along with the preflight request, the browser sends the following headers:

• Access-Control-Request-Method: This header contains the HTTP method which will be used when the actual request is made.
• Access-Control-Request-Headers: This is a list of headers that will be sent with the request including any custom headers.
• Origin: The origin header that contains the source origin of the request similar to the simple request.

The actual request to the cross-origin server will not be sent if the result of the OPTIONS method is that the request cannot be made.

After the preflight request is complete, the actual PUT method with CORS headers is sent.

CORS Requests with Credentials

In most real-life situations, requests sent to the cross-origin server need to be loaded with some kind of access credentials which could be an Authorization header or cookies. The default behavior of CORS requests is for the requests to be passed without any of these credentials.

When credentials are passed with the request o the cross-origin server, the browser will not allow access to the response unless the cross-origin server sends a CORS header Access-Control-Allow-Credentials with a value of true.

Implementing CORS in a Web Application

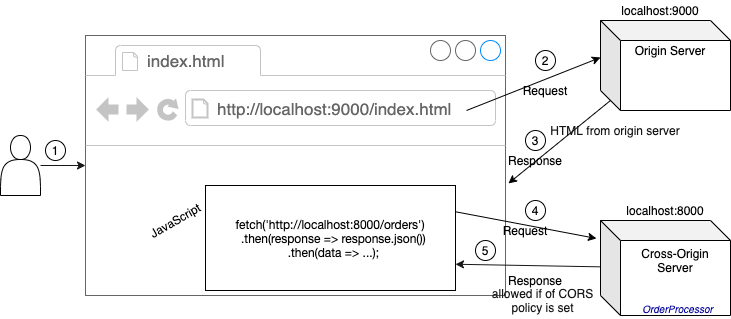

For observing the CORS requests, let us run two web applications written in Node.Js which will communicate with each other with the CORS protocol:

1. For cross-origin server we will use a web application named OrderProcessor that will contain a REST API with GET and PUT methods.
2. For origin server we will use another web application containing an HTML page. We will run JavaScript in this HTML page to communicate with the REST APIs in the OrderProcessor application which is our cross-origin server.

We can run these applications in our local machine using npm and node. The origin server hosting the HTML page is running on http://localhost:9000. This makes Ajax calls with the XMLHttpRequest object to the OrderProcessor application running on the cross-origin server with URL: http://localhost:8000 as shown in this figure:

These are CORS requests since the HTML in the origin server and OrderProcessor application in the cross-origin server are running in different Origins (because of different port numbers: 8000 and 9000 although they use the same scheme: HTTP and host: localhost).

Cross-Origin Server Handling CORS Requests in Node.js

Our cross-origin server is a simple Node.js application named OrderProcessor built with Express framework. We have created two REST APIs in the OrderProcessor application with GET and PUT methods for fetching and updating orders.

This is a snippet of the GET method of our OrderProcessor application running on cross-origin server on URL: localhost:8000:

app.get('/orders', (req, res) => {
  console.log('Returning orders');
  res.send(orders);
});

The GET method defined here is used to return a collection of orders.

Client Sending CORS Requests from JavaScript

For sending requests to the cross-origin server containing the OrderProcessor application, we will use an HTML page and package this inside another Node.js application running on localhost:9000. This will be our origin server.

We will call the GET and PUT methods from this HTML page using the XMLHttpRequest JavaScript object:

<html>
<head>
  <script>
       function load(domainURL) {
          var xhttp = new XMLHttpRequest();
          xhttp.onreadystatechange = function() {
              if (this.readyState == 4 && this.status == 200) {
              document.getElementById("demo").innerHTML = this.responseText;
              }
          };
          xhttp.open("GET", domainURL, true);
          xhttp.send();
        }

        function loadFromCrossOrigin() {
            load("http://localhost:8000/orders")
        }
  </script>
</head>
<body>
  <div id="demo">
    <h2>Order Processing</h2>
    <div>
      <button type="button"
              onclick="loadFromCrossOrigin()">
              ...
      </button>
    </div>
  </div>
</body>
</html>

The HTML shown here contains a button which we need to click to trigger the CORS request from the JavaScript method loadFromCrossOrigin.

CORS Error Due to Same-Origin Policy

If we run these applications without any additional configurations (setting CORS headers) in the cross-origin server, we will get a CORS error in our browser console as shown below:

This is an error caused by the restriction of accessing cross-origins due to the Same-Origin Policy. The error reason is :

Access to `XMLHttpRequest` at `http://localhost:8000/orders` from origin `http://localhost:9000` has been blocked by CORS policy: No `Access-Control-Allow-Origin` header is present on the requested resource.`

Fixing the CORS Error For Simple Requests

As suggested in the CORS error description, let us modify the code in the cross-origin server to return the CORS header Access-Control-Allow-Origin in the response:

app.use(function(req, res, next) {
  res.header("Access-Control-Allow-Origin", "http://localhost:9000");
  next();
});

app.get('/orders', (req, res) => {
  console.log('Returning orders');
  res.send(orders);
});

We are returning a CORS header Access-Control-Allow-Origin with a value of source origin http://localhost:9000 to fix the CORS error.

The CORS relevant request headers and response headers from a simple CORS request are shown below:

Request URL: http://localhost:8000/orders
Request Method: GET
Status Code: 200 OK

**Request Headers**
Host: localhost:8000
Origin: http://localhost:9000

**Response Headers**
Access-Control-Allow-Origin: http://localhost:9000

In this example, the HTML served from http://localhost:9000 sends a request to the cross-origin server containing a REST API with the URL http://localhost:8000/orders.

This is a simple CORS request since it is a GET request.

In the browser console log, we can see an Origin header sent in the request with a value of http://localhost:9000 which is the URL of the origin server.

The cross-origin server responds with a response header Access-Control-Allow-Origin. The browser is able to render the response since the response header Access-Control-Allow-Origin has the value http://localhost:9000 which exactly matches the value of the Origin header sent in the request. We can also configure partial matches by using wild cards in the form of * or http://*localhost:9000.

CORS Handling for Preflight Request

Now we will modify our code in the cross-origin server application to handle preflight request for calls made to the PUT method:

app.use(function(req, res, next) {
  res.header("Access-Control-Allow-Origin", "http://localhost:9000");
  res.header(
    "Access-Control-Allow-Headers",
    "Origin, X-Requested-With, Content-Type, Accept"
  );
  res.header(
    "Access-Control-Allow-Methods",
    "GET, POST, PUT, DELETE"
  );
  next();
});
app.put('/orders', (req, res) => {
  console.log('updating orders');
  res.send(orders);
});

For handling the preflight request, we are returning two more headers: Access-Control-Allow-Headers containing the headers Origin, X-Requested-With, Content-Type, Accept the server should accept. Access-Control-Allow-Methods containing the HTTP methods GET, POST, PUT, DELETE that the browser should send to the server if the preflight request is successful.

When we send the PUT request from our HTML page, we can see two requests in the browser network log:

The preflight request with the OPTIONS method is followed by the actual request with the PUT method.

We can observe the following request and response headers of the preflight request in the browser console:

Request URL: http://localhost:8000/orders
Request Method: OPTIONS
Status Code: 200 OK
..
..

Request Headers:
Accept: */*
Accept-Encoding: gzip, deflate, br
Accept-Language: en-US,en;q=0.9
Access-Control-Request-Headers: content-type
Access-Control-Request-Method: PUT
Connection: keep-alive
Host: localhost:8000
Origin: http://localhost:9000


Response Headers

Access-Control-Allow-Headers: Origin, X-Requested-With, Content-Type, Accept
Access-Control-Allow-Methods: GET, POST, PUT, DELETE
Access-Control-Allow-Origin: http://localhost:9000
Allow: GET,HEAD,PUT

In this example, the browser served from http://localhost:9000 sends a PUT request to a REST API with URL: http://localhost:8000/orders. Since this is a PUT request which will change the state of an existing resource in the cross-origin server, the browser sends a preflight request using the HTTP OPTIONS method. In response, the cross-origin server informs the browser that GET, HEAD, and PUT methods are allowed.

CORS Handling for Request with Credentials

We will now send a credential in the form of a Authorization header in our CORS request:

function sendAuthRequestToCrossOrigin() {
    var xhr = new XMLHttpRequest();
    xhr.onreadystatechange = function() {
        if (this.readyState == 4 && this.status == 200) {
          document.getElementById("demo").innerHTML = this.responseText;
        }
    };
    xhr.open('GET', "http://localhost:8000/orders", true);
    xhr.setRequestHeader('Authorization', 'Bearer rtikkjhgffw456tfdd');
    xhr.withCredentials = true;
    xhr.send();
}

Here we are sending a bearer token as the value of our Authorization header. To allow the browser to read the response, the cross-origin server needs to send the Access-Control-Allow-Credentials header in the response:

app.use(function(req, res, next) {
  res.header("Access-Control-Allow-Origin", "http://localhost:9000");
  res.header(
    "Access-Control-Allow-Headers",
    "Origin, X-Requested-With, Content-Type, Accept, Authorization"
  );
  res.header(
    "Access-Control-Allow-Methods",
    "GET, POST, PUT, DELETE"
  );
  res.header("Access-Control-Allow-Credentials",true);
  next();
});
app.put('/orders', (req, res) => {
  console.log('updating orders');
  res.send(orders);
});

We have modified our code in the cross-origin server to send a value of true for the Access-Control-Allow-Credentials header so that the browser is able to read the response. We have also added the Authorization header in the list of allowed request headers in the header Access-Control-Allow-Headers.

We can see the request and response headers in the browser console:

Request URL: http://localhost:8000/orders
Request Method: GET
Status Code: 200 OK

Response Headers:

Access-Control-Allow-Credentials: true
Access-Control-Allow-Headers: Origin, X-Requested-With, Content-Type, Accept, Authorization
Access-Control-Allow-Methods: GET, POST, PUT, DELETE
Access-Control-Allow-Origin: http://localhost:9000

Request Headers:

Accept: */*
Accept-Encoding: gzip, deflate, br
Accept-Language: en-US,en;q=0.9
Authorization: Bearer rtikkjhgffw456tfdd

Origin: http://localhost:9000

In this log, we can see the security credential in the form of the Authorization header in the request which contains a bearer token. The Authorization header is also included in the header named Access-Control-Allow-Headers returned from the cross-origin server. The browser can access the response since the value of the Access-Control-Allow-Credentials header sent by the server is true.

Vulnerabilities Caused by CORS Misconfiguration

Communications with CORS protocol also have the potential to introduce security vulnerabilities caused by misconfiguration of CORS protocol on the cross-origin server. Some misconfigurations can allow malicious domains to access the API endpoints, while others allow credentials like cookies to be sent from untrusted sources to the cross-origin server and access sensitive data.

Let us look at two examples of CORS vulnerabilities caused by any misconfiguration in the code:

Origin Reflection - Copying the Value of Origin Header in the Response

As we have seen earlier, when the browser sends a request to a cross-origin server, it adds an Origin header containing the value of the domain the request originates from. The cross-origin server needs to return an Access-Control-Allow-Origin header with the value of the Origin header received in the request.

There could be a scenario of multiple domains that need access to the resources of the cross-origin server. In that case, the cross-origin server might set the value of the Access-Control-Allow-Origin header dynamically to the value of the domain it receives in the Origin header. A Node.js code setting the header dynamically may look like this:

const express = require('express');
const app = express();
...
...
app.get('/orders', (req, res) => {

  console.log('Returning orders');

  // set to the value received in Origin header
  res.header("Access-Control-Allow-Origin", req.header('Origin'));
  res.send(orders);
});

Here we are reading the value of the Origin header received in the request and setting it to the value of the Access-Control-Allow-Origin header sent in the response.

Doing this will allow any domain including malicious ones to send requests to the cross-origin server.

Lenient Regular Expression

Similar to the earlier example, we can check for the value of the Origin header in the cross-origin server code by applying a regular expression. If we want to allow all subdomains to send requests to the cross-origin server, the code will look like this:

const express = require('express');
const app = express();
...
...
app.get('/orders', (req, res) => {

  console.log('Returning orders');

  origin = req.getHeader("Origin");
  // allow requests from subdomains of mydomain.com
  let re = new RegExp("https:\/\/[a-z]+.mydomain.com")
  if re.test(origin, regex){
     // set to the value received in Origin header
     res.header("Access-Control-Allow-Origin", origin);
  }
  res.send(orders);
});

Since the dot character in the regular expression is not escaped, requests from sites like https://xyzmydomain.com will also be served. Any attacker can exploit this vulnerability by buying xyzmydomain.com and hosting the malicious code there.

Avoiding Security Vulnerabilities Caused by CORS Misconfiguration

Here are some of the best practices we can use to implement CORS securely:

1. In the application in the cross-origin server, we can define a whitelist of specific domains that are allowed to access the cross-origin server. When the request arrives, we should validate the Origin header against the whitelist to allow or deny access by populating appropriate values in the CORS response headers.
2. Similarly, for the Access-Control-Allow-Methods header, we should specify exactly what methods are valid for the whitelisted domains to use.
3. We should be validating all domains that need to access resources, and the methods other domains are allowed to use if their access request is granted.
4. We should also use CORS scanners to detect security vulnerabilities caused by CORS misconfigurations.
5. CORS checks should also be part of penetration testing of critical applications. OWASP guidance on testing CORS provides guidelines for identifying endpoints that implement CORS and ensure the security of the CORS configuration.

Conclusion

In this article, we learned about CORS and how to use CORS policy to communicate between websites from different origins.

Let us recap the main points that we covered:

1. CORS is a security protocol implemented by browsers that allow us to access resources from a different origin.
2. CORS requests are of three types: Simple, Preflight, and Request with Credentials.
3. Simple requests are used to perform safe operations like an HTTP GET method.
4. Preflight requests are for performing operations with side-affects like PUT and DELETE methods.
5. Towards the end, we looked at examples of security vulnerabilities caused by CORS misconfigurations and some best practices for secure CORS implementation.

I hope this guide will help you to get started with implementing CORS securely and fixing CORS errors.

You can refer to all the source code used in the article on Github.
